Internal Direct Signatures

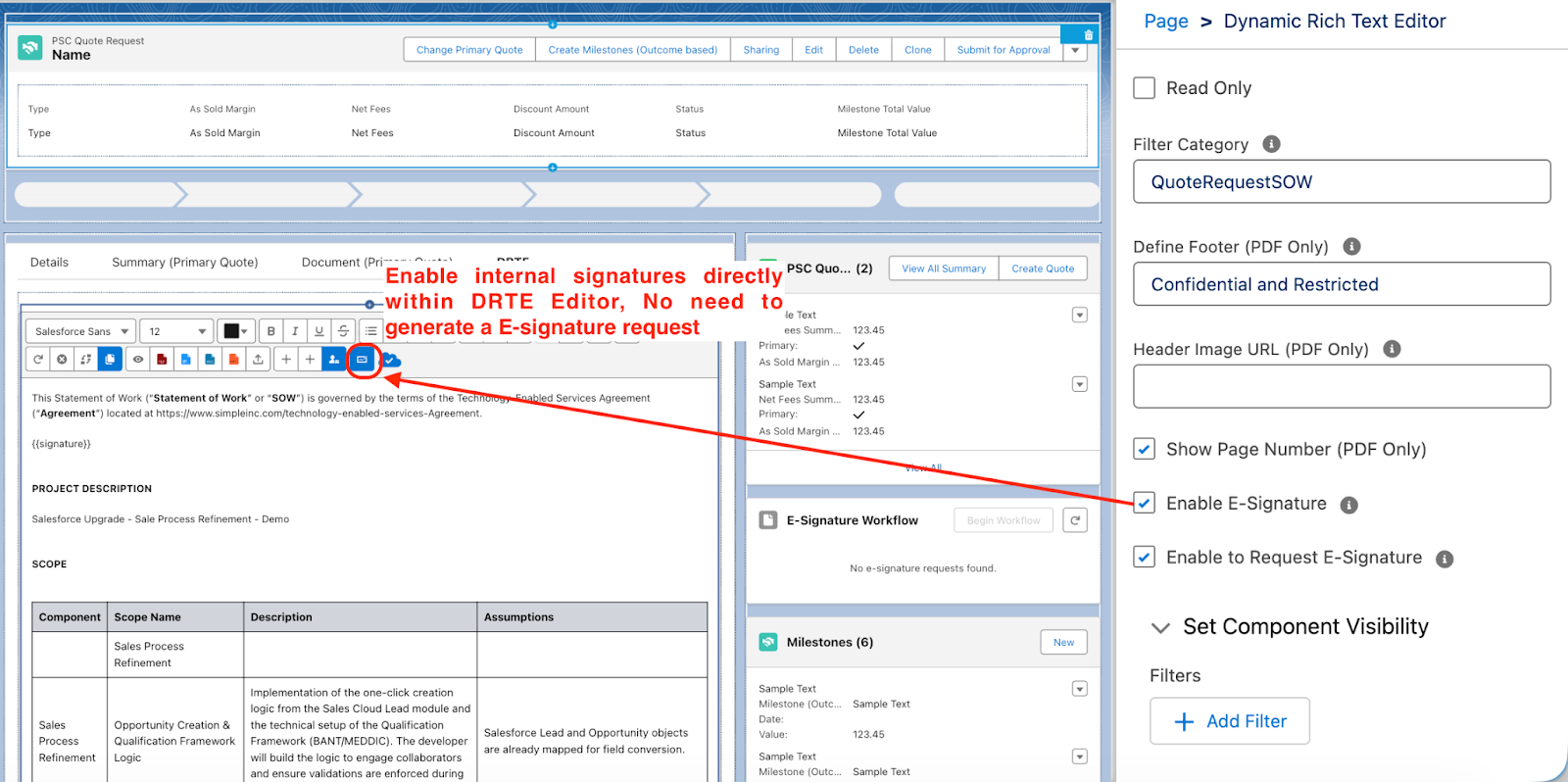

Admin Configuration

To use this feature, an administrator must enable the following in the Component Visibility settings:

• Enable E-Signature: Must be checked.
• Toolbar Icon: Once enabled, the Blue Pen/Envelope icon will appear in the DRTE toolbar.

How to Apply an Internal Signature

Follow these steps to sign a document internally:

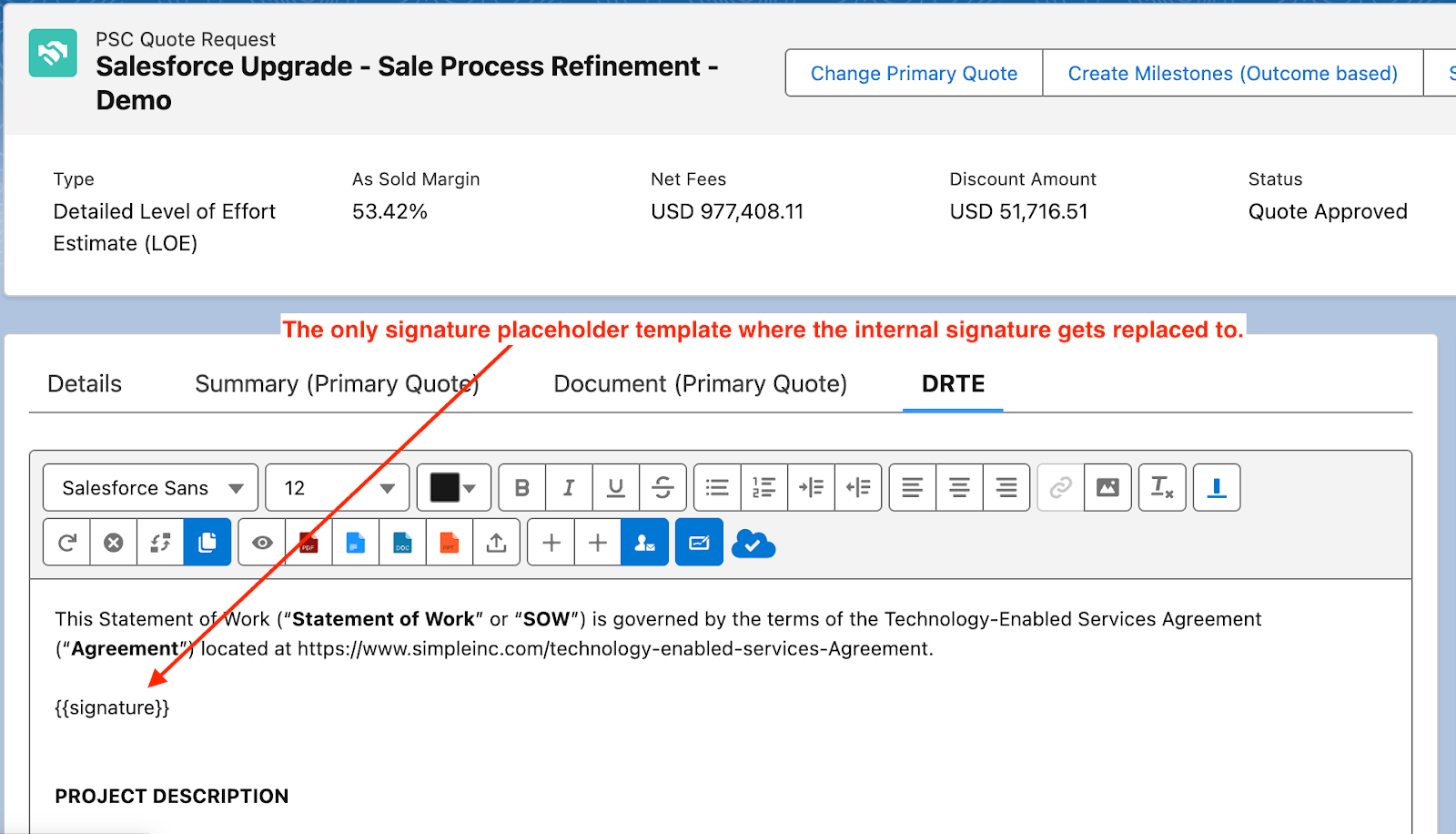

Step 1: Insert the Placeholder

1. Navigate to the DRTE tab.
2. Type or ensure the placeholder tag {{signature}} is present in the document where you want the signature to appear.

• Note: This is the only template tag that the internal signature utility will recognize and replace.

Step 2: Launch the Signature Utility

1. Click the Internal Signature icon (Blue Pen/Envelope) in the toolbar.
2. An Internal Signature Utility window will appear.

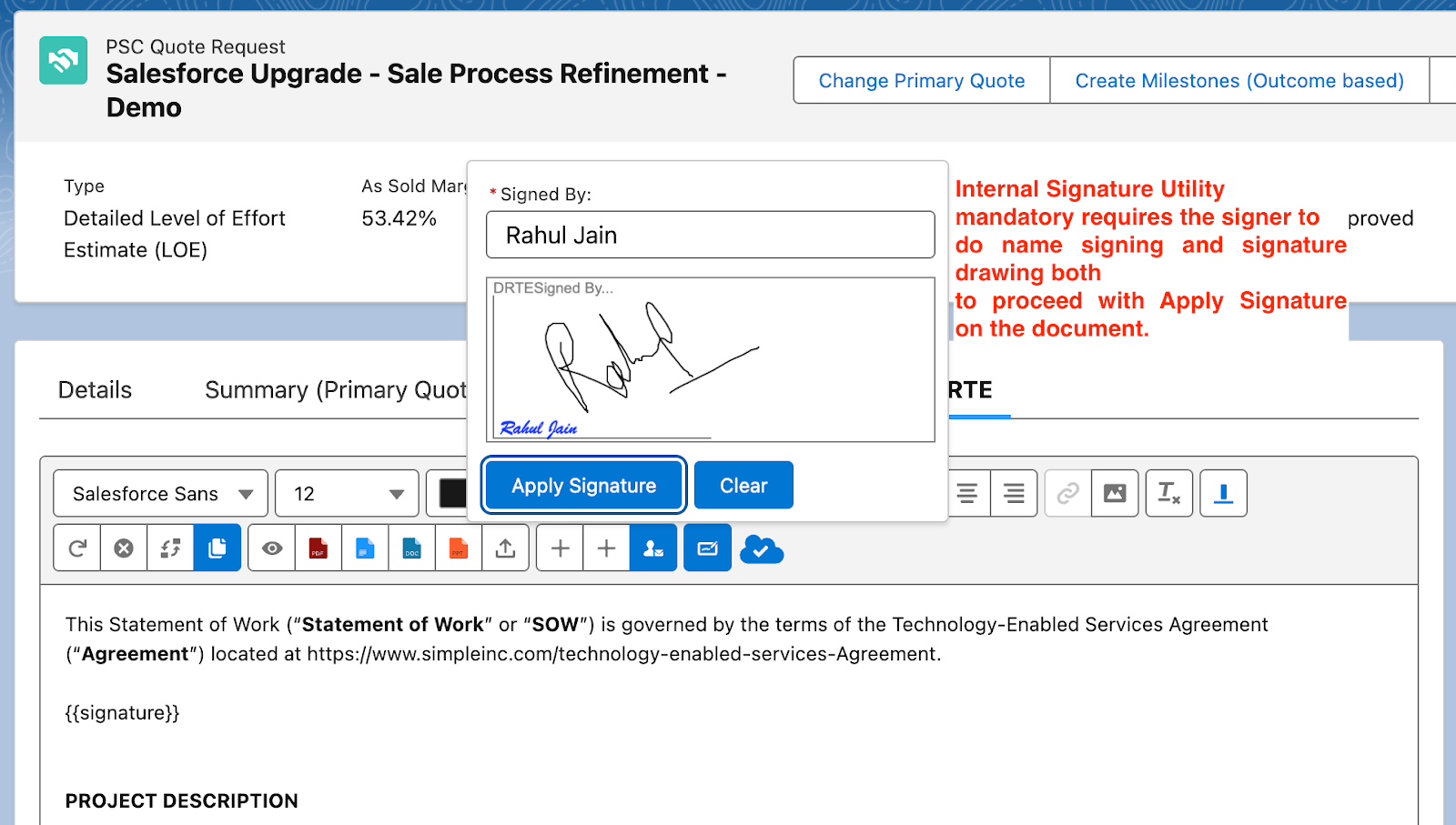

Step 3: Sign and Apply

1. Name Signing: Type your name into the "Signed By" field.
2. Signature Drawing: Use your mouse or touch device to draw your signature in the signature box.

• Both name typing and drawing are mandatory to proceed.

1. Click Apply Signature.

Verification and Audit Logs

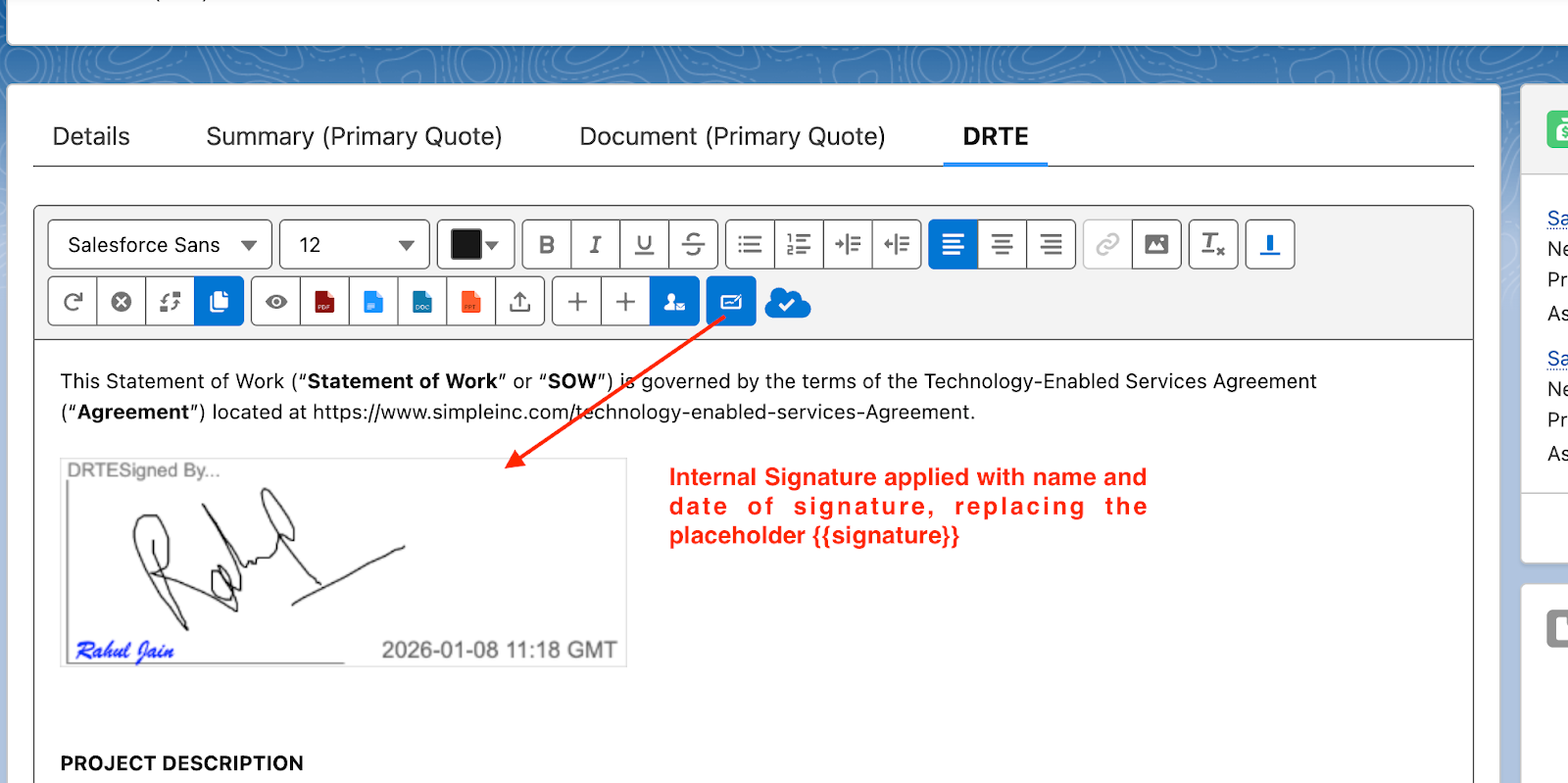

Document Rendering

The system automatically replaces the {{signature}} tag with a composite image containing your drawn signature, printed name, and the precise Date/Time stamp of the action.

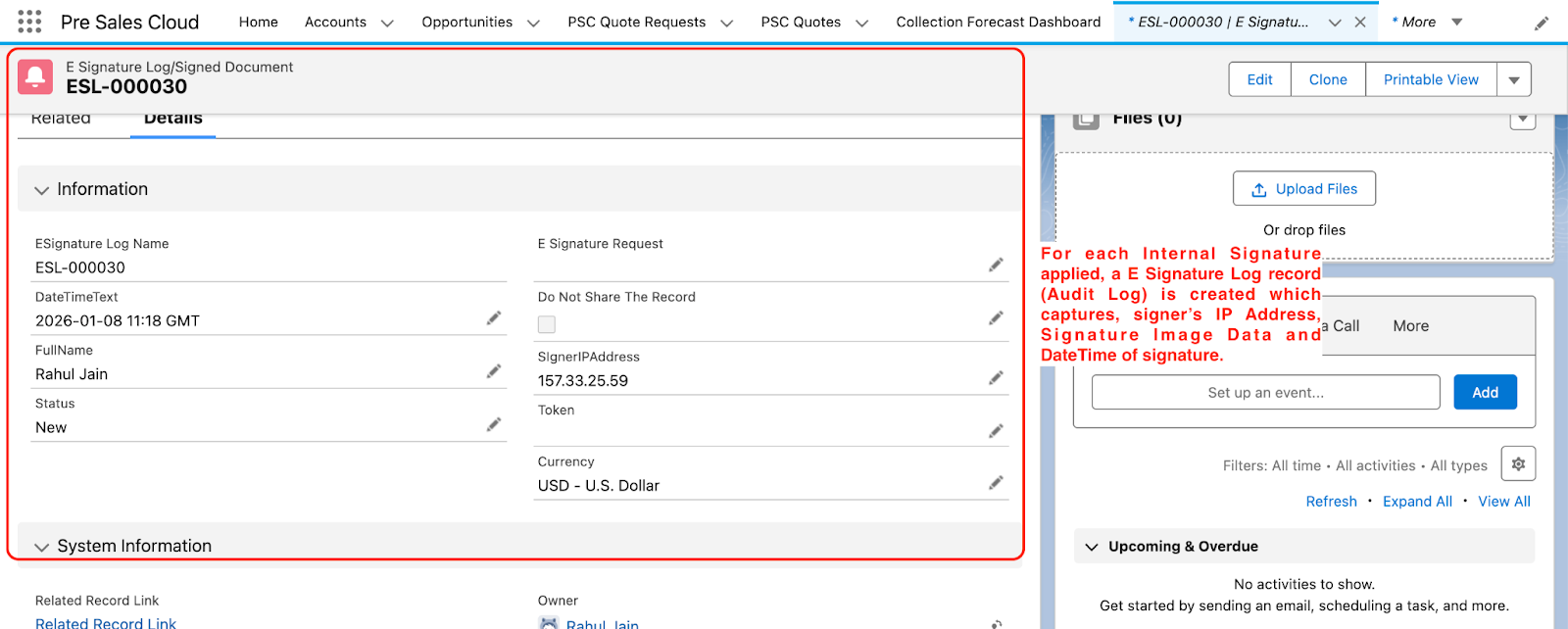

The Audit Log (Compliance)

For every internal signature applied, the system generates an E-Signature Log (Audit Log) record. This log captures:

• Signer's Full Name
• Signer's IP Address
• Precise Date and Time
• Signature Image Data

Summary Table
